Description

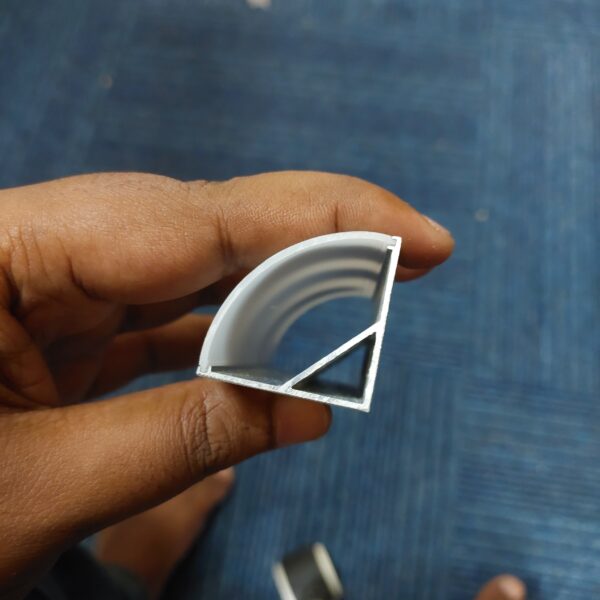

S3030 Corner Aluminium Profile – 30mm x 30mm, 3000mm Length, Anodised Aluminium with Clear/Opal Frosted Diffuser & Accessories

The S3030 Corner Aluminium Profile is a premium-grade lighting accessory designed to house and protect LED strip lights in architectural and interior lighting projects. Built from anodised aluminium, this corner profile combines durability, heat management, and sleek aesthetics to deliver both functional and decorative lighting.

With a 30mm width and 30mm height, this profile is engineered to fit neatly into 90° corners, providing smooth and uniform illumination where walls, ceilings, or cabinetry meet. Its 3-metre standard length makes it suitable for a wide variety of installations, from residential interiors to large commercial projects.

This profile is equipped with a high-quality polycarbonate (PC) diffuser, available in Clear or Opal Frosted options. The diffuser softens the LED light, providing dot-free, glare-free, and even illumination, which elevates the ambience of any space. In addition, the profile comes with end caps and mounting clips, ensuring a professional finish and easy installation.

Key Features of S3030 Corner Aluminium Profile

1. Premium Anodised Aluminium Body

The anodised aluminium construction makes the S3030 profile strong, lightweight, and resistant to corrosion, scratches, and wear. This ensures a long-lasting finish suitable for high-end interiors and architectural applications.

2. Designed for Corners (90° Mounting)

Specially designed for corner installations, this profile fits seamlessly in 90° angles, such as wall-to-ceiling, wall-to-floor, or cabinet-to-wall junctions. It provides uniform light distribution in corners while maintaining a sleek, modern look.

3. Multiple Diffuser Options

The profile includes a PC diffuser in two finishes:

• Clear Diffuser – Maximum brightness with high light transmission.

• Opal Frosted Diffuser – Smooth, soft lighting with dot-free illumination.

Both options ensure professional-quality light diffusion, suitable for different design preferences.

4. Complete Accessories for Easy Installation

The S3030 comes with end caps for neat finishing and mounting clips for secure, hassle-free installation. This allows electricians, interior designers, and DIY users to achieve a polished and professional result.

5. Heat Dissipation & LED Protection

The aluminium profile acts as a heat sink, drawing heat away from the LED strip to prevent overheating and extend its lifespan. The diffuser and housing also protect LEDs from dust, impact, and accidental contact, ensuring long-term durability.

Technical Specifications

• Model: S3030

• Profile Type: Corner Aluminium LED Profile

• Material: Anodised Aluminium

• Diffuser Options: Clear / Opal Frosted (PC)

• Accessories: End Caps, Mounting Clips

• Width (W): 30mm

• Height (H): 30mm

• Length (L): 3000mm (3 metres)

• LED Strip Compatibility: Up to 20mm wide LED strips

• Application: Indoor (residential, commercial, architectural)

Applications of S3030 Corner Aluminium Profile

The S3030 profile is widely used across different industries and interior spaces:

• Residential Interiors – For living rooms, bedrooms, kitchens, and wardrobes.

• Kitchen Cabinets – Under-cabinet lighting for task areas and countertops.

• Wall & Ceiling Corners – Creates architectural lighting effects in modern false ceilings and wall junctions.

• Retail & Showrooms – Enhances product displays with stylish accent lighting.

• Offices & Workspaces – Adds ambient lighting in corners for better aesthetics.

• Hospitality & Commercial Spaces – Perfect for hotels, restaurants, and lounges.

• Furniture & Display Units – Used in modular furniture, bookshelves, and decorative units.

Benefits of Using S3030 Corner Profile

• Professional Finish: Elevates the look of LED strip installations with a premium aluminium housing.

• Versatility: Suitable for a wide range of applications from residential to commercial spaces.

• Smooth Illumination: Clear or Opal Frosted diffusers provide soft, even light.

• LED Protection: Prevents exposure to dust, impacts, and accidental touches.

• Energy Efficiency: Extends LED life through proper thermal management.

• Ease of Use: Supplied with mounting clips and end caps for simple installation.

Why Choose S3030 Aluminium Corner LED Profile?

• Robust anodised aluminium body with elegant design.

• Optimised dimensions (30mm × 30mm × 3000mm) for versatile use.

• Clear & Opal Frosted diffuser options to suit different lighting styles.

• Comes with end caps & mounting clips for ready-to-install convenience.

• Perfect for modern architectural lighting in homes, offices, and commercial interiors
