S4142 Hand Railing Aluminium LED Profile – 41mm Width, 42mm Height, 3000mm Length with Black/Clear/Opal Frosted Diffuser & End Caps

4,673

Installation Cost at ₹40/sqft – Limited Offer!
Price includes profile + diffuser only – LED & driver not included.
DM for customization or bulk orders!

Description

S4142 Hand Railing Aluminium LED Profile – 41mm Width, 42mm Height, 3000mm Length with Black/Clear/Opal Frosted Diffuser & End Caps

The S4142 Hand Railing Aluminium Profile is a high-quality anodised aluminium extrusion designed for integrated LED lighting in handrails, staircases, and architectural railing systems. With its 41mm width, 42mm height, and 3000mm length, this profile combines durability, safety, and modern aesthetics, making it ideal for both residential and commercial projects.

Engineered with premium anodised aluminium, the S4142 profile ensures excellent strength and corrosion resistance while providing superior heat dissipation for LED strips. It comes with polycarbonate (PC) diffusers in Black, Clear, or Opal Frosted options, giving designers flexibility to achieve the perfect lighting effect. The included end caps deliver a professional finish while protecting the strip and wiring inside.


Key Features of S4142 Hand Railing Aluminium Profile

1. Premium Anodised Aluminium Body

Made from robust anodised aluminium, the S4142 profile ensures durability, long life, and resistance against rust, scratches, and wear – perfect for handrail installations exposed to frequent use.

2. Optimised Dimensions

  • Width (W): 41mm

  • Height (H): 42mm

  • Length (L): 3000mm (3 metres)

These dimensions make it suitable for wide LED strips and powerful lighting applications, ensuring uniform brightness along staircases and railings.

3. Multiple Diffuser Options

The profile comes with high-quality polycarbonate diffusers available in:

  • Black – Sleek modern appearance with subtle light diffusion.

  • Clear – Maximum brightness with high light transmission.

  • Opal Frosted – Smooth, soft illumination with dot-free light output.

4. End Caps for Neat Finishing

Included end caps provide a clean, professional finish while protecting the LED strip from dust and accidental damage.

5. Excellent Heat Dissipation

The aluminium body ensures proper thermal management, extending the life of LED strips while maintaining consistent brightness.

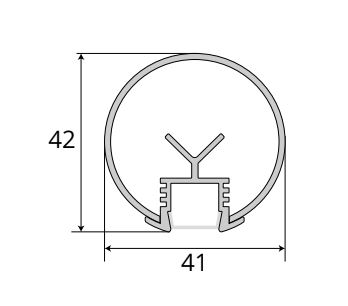

Technical Specifications

  • Model: S4142

  • Material: Anodised Aluminium

  • Width (W): 41mm

  • Height (H): 42mm

  • Length (L): 3000mm (3 metres)

  • Diffuser Options: Black / Clear / Opal Frosted (PC diffuser)

  • Accessories: End Caps (included)

  • Application: Indoor / Semi-outdoor handrail and architectural lighting


Applications

The S4142 hand railing aluminium LED profile is designed for:

  • Handrail Lighting: Integrated into railings for safe stairway illumination.

  • Staircase Lighting: Provides guided lighting with modern aesthetics.

  • Balconies & Terraces: Perfect for railing-mounted lighting in homes or commercial spaces.

  • Architectural Handrails: Adds elegance to hotels, malls, offices, and residential complexes.

  • Public Areas: Ideal for hospitals, airports, auditoriums, and theatres where railing lighting enhances both safety and ambience.


Benefits of S4142 Hand Railing Aluminium Profile

  • Safe & Functional Lighting: Perfect for guiding pathways and stairs.

  • Customizable Light Output: Choice of diffusers allows bright, soft, or subtle illumination.

  • Professional Appearance: Anodised aluminium with end caps ensures a sleek finish.

  • LED Strip Protection: Shields LEDs from dust, moisture, and accidental contact.

  • Extended LED Lifespan: Superior heat dissipation reduces overheating.


Why Choose the S4142 Aluminium LED Hand Railing Profile?

  • Built from durable anodised aluminium for long-lasting use.

  • Available with multiple diffuser options (Black, Clear, Opal Frosted) for design flexibility.

  • Dimensions (41mm W × 42mm H × 3000mm L) optimized for railing integration.

  • Provides uniform, glare-free lighting that enhances both safety and aesthetics.

  • Includes end caps for complete, professional installation

Additional information

Outer Size

13 x 13mm

Type of Item

LED Profile

Length

1 Meter, 1.5 Meter, Full Length
